FEATURES

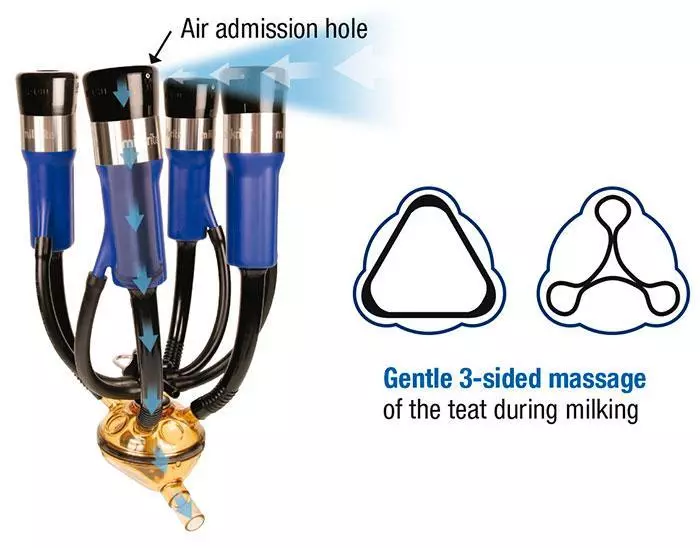

Key benefits – Mouthpiece Vented Triangular Liner
– Reduced teat to teat contamination
– More efficient milk removal
– Exceptional cow comfort
– Improves teat condition
– Reduced slips and kick-offs
– Easier cluster removal.
Click here for full range of Daveisway Claws
TECHNICAL

Daviesway provide a broad range of Mouthpiece Vented and Non-Vented Triangular milking liners in both wide and narrow bore sizes.
- The wide bore IP15HV Liner is our most popular Triangular Vented milking liner – best suited to herds with predominately medium to larger teats and fits a 12-14 mm angled claw nipple.
- IP10HV and 13HV Liner has the same specifications as the IP15 HV, however the IP10 HV Liner fits a 13mm straight cut claw nipple and 13HV Liner fits a DeLaval Harmony Claw.
Please view the table below or consult your local Milking Machine Dealer for more information regarding the best Triangular Liner for your dairy cows.
Milkrite Liner & Shell Specifications
LINER | Vented / Non-vented
| Shell | CLAW MILK NIPPLE SIZE (mm) | Bore | Triangular / Round | Pre-Collapse Point | Equivalent |
IP10 HV* |
Vented |
IP15 |
13mm |
Wide |
Triangular |
Yes |
|
IP10-01 HV* |
Vented |
IP15 |
13mm |
Wide |
Triangular |
Yes |
SMT 25mm shorter |
Note: Liners with a pre-collapse point are designed for use with straight cut milk nipples |
IP12 HV* |
Vented |
IP15 |
11mm |
Wide |
Triangular |
|
|
IP13 HV* |
Vented |
IP15 |
Harmony |
Wide |
Triangular |
|
|
IP15 HV* |
Vented |
IP15 |
13mm |
Wide |
Triangular |
|
|
IP23 HV* |
Vented |
IP25 |
Harmony |
Narrow |
Triangular |
|
|
IP25 HV* |
Vented |
IP25 |
13mm |
Narrow |
Triangular |
|
|
IP4 LM WB |
Vented |
IP25 |
13mm |
Narrow |
Triangular |
|
|
IP4 LM WB FS |
Vented |
IP25 |
15mm |
Narrow |
Triangular |
|
|
IP13 U |
Non-Vented |
IP15 |
Harmony |
Wide |
Triangular |
|
|
IP15 U |
Non-Vented |
IP15 |
13mm |
Wide |
Triangular |
|
|
Shell Clarification |
Name |
Suits Liners |
|
|
IP15 |
IP10, IP12, IP13, IP15 |
* HV OR MV -THESE ARE THE SAME LINER MADE TWO LOCATIONS |
|
IP25 |
IP4, IP23, IP25 |
|
PRODUCTS
IMPULSE AIR TRIANGULAR LINERS
CODE 8215 – IMPULSE LINER IP10HV OR IP10MV (Set 4) VENTED
CODE 8207 – IMPULSE LINER IP10-01HV OR IP10-01MV (Set 4) VENTED
CODE 8217 – IMPULSE LINER IP12HV ORIP12MV (Set 4) VENTED
CODE 8201 – IMPULSE LINER IP13HV OR IP13MV (Set 4) VENTED
CODE 8203 – IMPULSE LINER IP15HV OR IP15MV (Set 4) VENTED
CODE 8213 – IMPULSE LINER IP23HV OR IP23MV (Set 4) VENTED
CODE 8214 – IMPULSE LINER IP25 (Set 4) VENTED
CODE 8209 – IMPULSE LINER IP4 LM WB (Set 4) VENTED
CODE 8218 – IMPULSE LINER IP4 LM WB FS (Set 4) VENTED
NOTE:
IP4 HAS BEEN REPLACED BY IP25 – We hold limited stock of IP4
* HV OR MV -THESE ARE THE SAME LINER MADE TWO LOCATIONS
IMPULSE TRIANGULAR LINERS
CODE 8200 – IMPULSE LINER IP13U (4) NON VENTED
CODE 8202 – IMPULSE LINER IP15U (4) NON VENTED

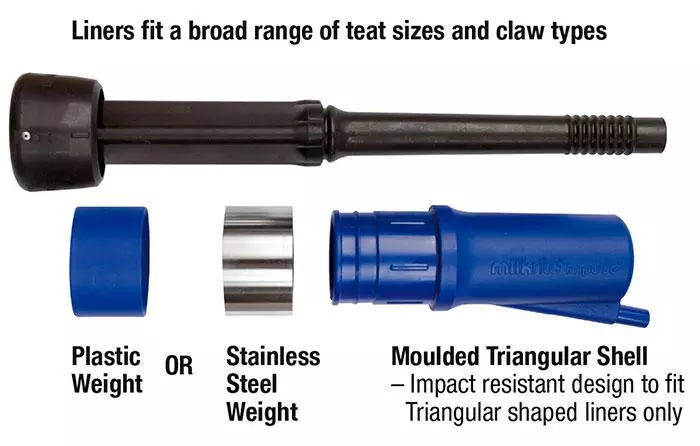

IMPULSE SHELLS
CODE 8232 – IMPULSE BLUE SHELL - IP15 - EA
CODE 8233 – IMPULSE PLASTIC WEIGHT - IP15 - EA
CODE 8234 – IMPULSE STAINLESS STEEL WEIGHT - IP15 - EA
CODE 8235 – IMPULSE BLUE SHELL - IP25 - EA
CODE 8236 – IMPULSE PLASTIC WEIGHT - IP25 - EA
CODE 8237 – IMPULSE STAINLESS STEEL WEIGHT - IP25 - EA
NOTE:
IP 15 SHELL – SUITS LINERS IP10, IP12, IP13, IP15
IP 25 SHELL - SUITS LINERS IP4, IP23, IP25
